MIZZTECH China Top Quality Heavy Duty Mining Sand Slurry Pump

  • 1 - 4 Sets
    $650.00
  • >=5 Sets
    $550.00
Horsepower:
7.45-5445HP
Maximum Flow Rate:
10-5400M3/H
Maximum Head:
5-90M
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MIZZTECH
Model Number:
MIZZTECH -MAH
Structure:
Single-stage Pump
Usage:
Mining
Application:
Miing, Sewage, sludge mining
Power:
Electric
Fuel:
Diesel
Pressure:
High Pressure
Theory:
Centrifugal Pump
Standard or Nonstandard:
Standard
Product name:
Horizontal slurry pump
Model:
MAH
Material:
Metal &rubber or request
Color:
request
Packing:
standard wooden case
Feature:
Double Casting pump
Payment:
T/T ,L/c
Supply Ability
Supply Ability:
2000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Wooden case or request
Port
Tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

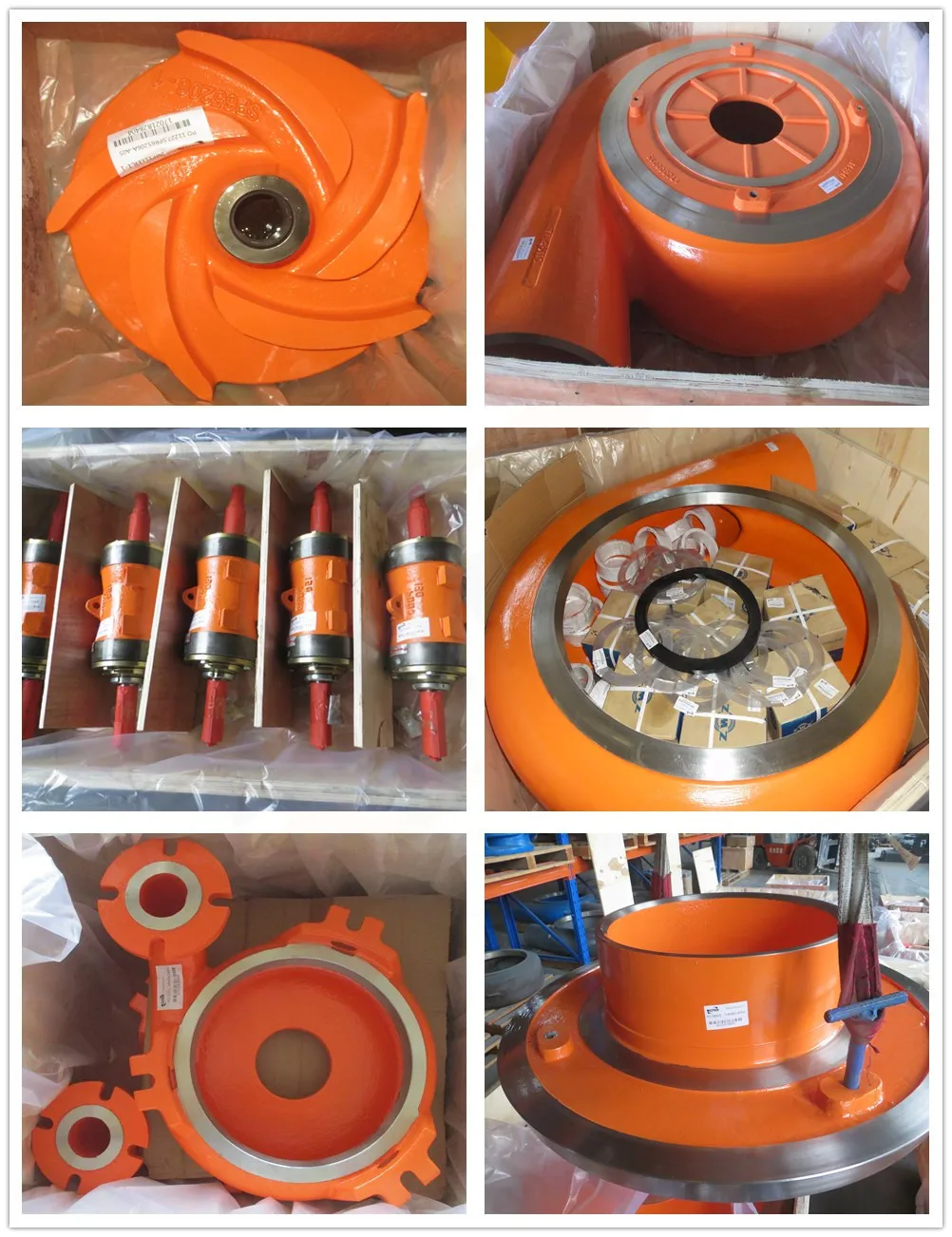

Detailed Images

MAH(R) HEAVY DUTY SLURRY PUMPS

1.MAH(R) hard metal/rubber heavy duty slurry pumps are available wither rubber or metal lined utilizing abrasive and corrosive resistant materials.

2.Extra thick sections at wear point and perfect impeller structure ensures satisfactory performance with long life, and needs minimum maintenance requirements.

3.Rubber lined pump expand applications to chemical productions handling, several different rubber options are available to meet different application needs.

4.Especially fit in aggressive applications like mill discharge, tailing transportation.

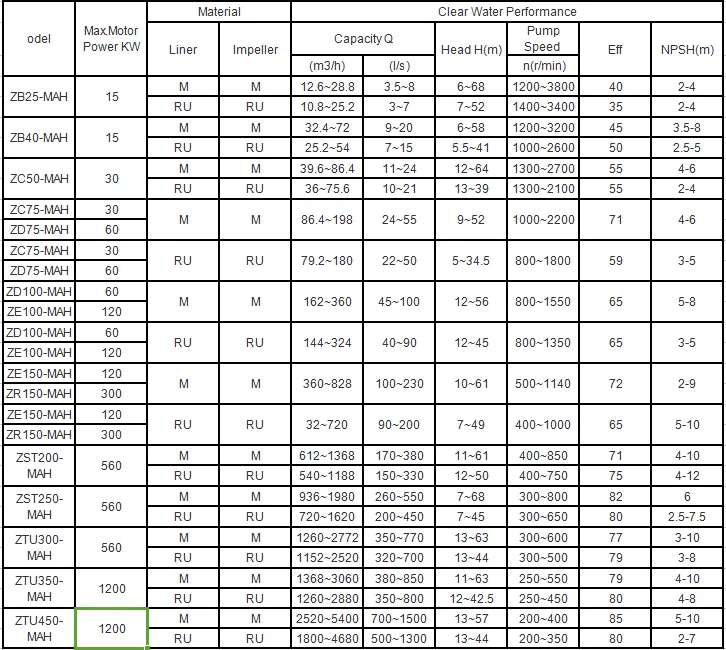

PARAMETERS:


a) Hard metal or elastomer linerd

b) Discharge diameter: DN25-DN400mm

c) Flow: 12-5400m3/h

d) Max delivery head: 80 m

e) Rotate speed: 200-3800r/min


f) Motor power: 15-1200 KW

g)Working temperature:≤80 °C

Packing & Delivery
Our Service

ABOUT US

Mizzteh is one new & large style company owned private.

The company was started since 2008,with only several years constructio, Mizztech has formed an awesome capacity of producing mining equipments ,such as slurry pumps, dredging pumps, and rubber liners, mining processing solutions etc.

At present, Mizztech factory has the production capacity of 1000 Sets/4000 tons, mainly supply whole setup pumps ,ball mills, vibration screens, floating selection equipments and even hydro cyclone series products for domestic and abroad business department in the area of mining, metallurgy, Electricity, Petrol ,Chemical, Coal, Environment protection, city water supplying, Land irrigation etc.

Why you choose us

1.Independent and rigorous production process control process

2.overseas warehouse for visiting

3.Sufficient experience in overseas projects

4.Participation of domestic government projects

5.Perfect after - sales installation system

6.Years of practical export experience

7.Professional design philosophy
